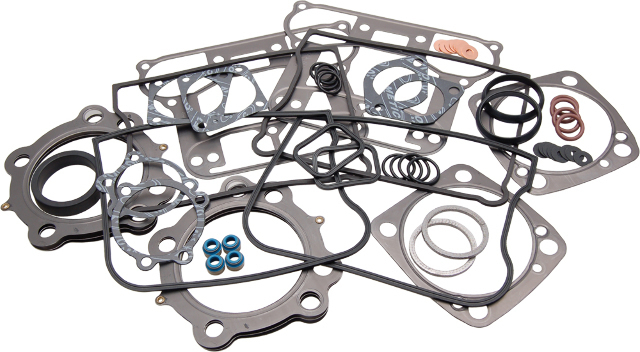

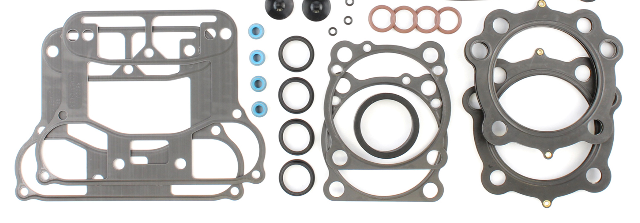

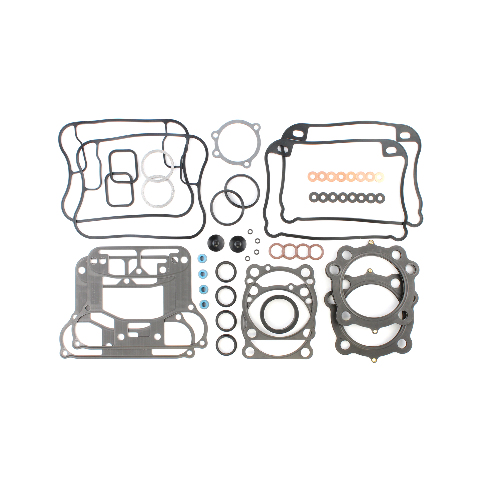

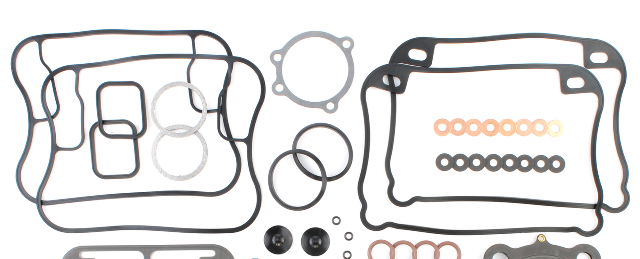

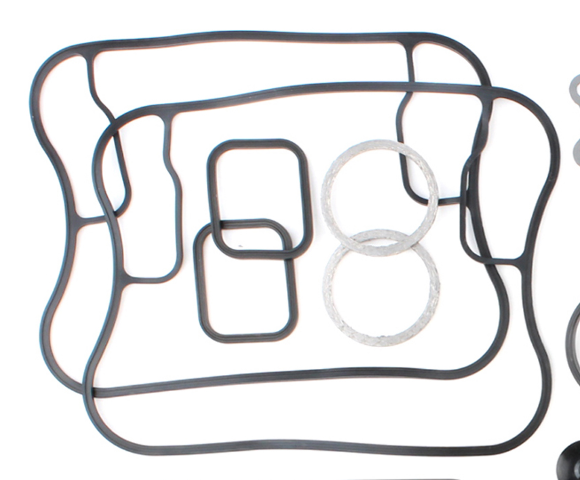

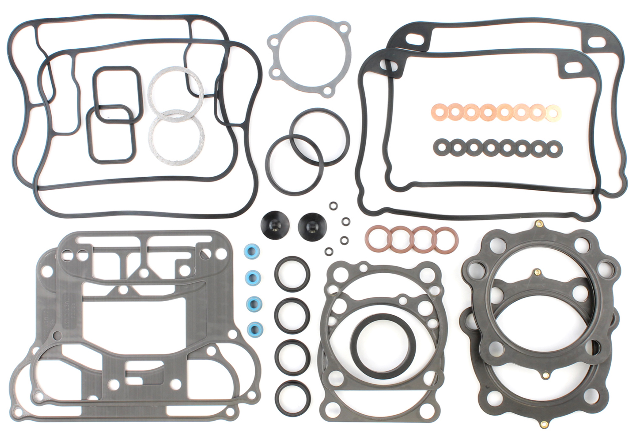

Cometic Top End Gasket Set for XL
High-quality gaskets ensure long-term reliability
Gasket sets feature Extreme Sealing Technology (EST) including embossed stainless steel head, base and rocker gaskets covered with a proprietary rubber material
Head gasket material allows heat to be drawn away from the combustion ring and dissipated evenly across the gasket surface to eliminate hot spots which could lead to gasket failure
Sets contain all the necessary gaskets, seals and O-rings to rebuild the top end from the cylinder base up

NOTE:

For XL 1200 91-03 with .030 in. head gasket

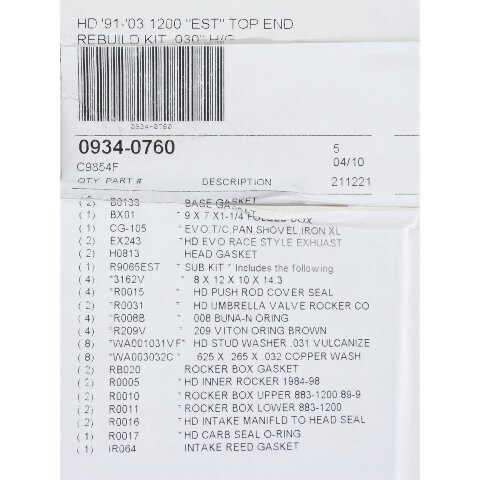

Included Items:
(2) Base gaskets
(1) 9 x 7 x 1 1/4 folded box
(2) HD Evo race style exhausts
(2) Head Gaskets
(4) HD push rod cover seal
(2) HD umbrella valve rocker cover
(4) 008 buna o-rings
(4) 209 O-ring brown
HD 3097 x 5625 cut to .4200
(8) HD stud washer .031 culcanize
(8) .625 x .265 x .32 copper washers
(2) Rocker box gasket
(2) HD inner rocker 1984-98
(2) Rocker box upper 883-1200
(2) Rocker box lower 883-1200
(2) HD intake manifold gasket seal
(1) HD carb seal o ring
(1) Intake reed gasket

Specs
Product Name Gasket Kit
Type Top End
Material Rubber / Stainless Steel
Bore Size 3.500"
Thickness 0.76 mm / 0.030"
Displacement 1200 cc
Engine Type 4-Stroke
Features For '91-'03 XL 1200
Units Kit
Riding Style Street

Package info
Weight 0.78 lbs
Height 1.65
Length 9.4
Width 7.24

1999-2003 Harley-Davidson Sportster 1200 XLH
1996-2003 Harley-Davidson XL1200S Sportster 1200 Sport
1996-2003 Harley-Davidson XL1200C Sportster 1200 Custom
1991-1998 Harley-Davidson XLH1200
