The Mikuni TM36-68 is supplied with the following factory jetting installed:
Pilot jet 12.5 (VM28/486), Needle 9DZH6-50, Needle Jet P-8 (568 Series), Main Jet 130 (N100.604), Air Jet 1.0

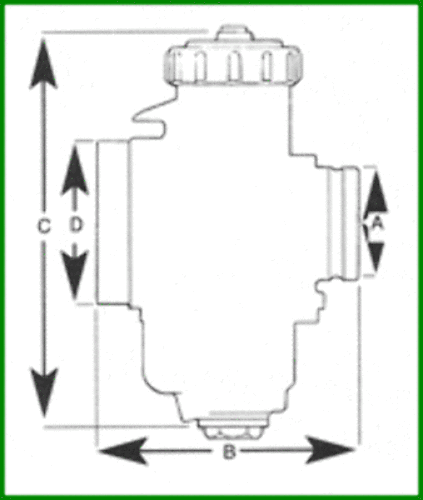

Mikuni TM36-68 Dimension A= 42mm, B= 100mm, C= 176mm, D= 54mm. Total width=75mm
Going fast has never been so easy. These carburetors can be adapted to a number of different applications from single to multi-cylinder engines, giving better throttle response, improved acceleration, increased horsepower and torque. In a number of instances Dyno tests have shown improvements of up to 25% when fitted to same size CV carburettored engines.
Pilot jet 12.5 (VM28/486), Needle 9DZH6-50, Needle Jet P-8 (568 Series), Main Jet 130 (N100.604), Air Jet 1.0
Mikuni TM36-68 Dimension A= 42mm, B= 100mm, C= 176mm, D= 54mm. Total width=75mm
Going fast has never been so easy. These carburetors can be adapted to a number of different applications from single to multi-cylinder engines, giving better throttle response, improved acceleration, increased horsepower and torque. In a number of instances Dyno tests have shown improvements of up to 25% when fitted to same size CV carburettored engines.
