Includes top compression rings, second compression rings, and oil control rings
Top Compression Ring is Torsional
Increases gas side sealing and better oil control
May have barrel or straight face
Second Compression Ring is Torsional
This twist ring creates an OD bottom side scraping edge that helps wipe oil off the cylinder wall and into the crankcase
Sharp edge contact helps speed break-in
Oil Control Rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA

Includes enough rings for two pistons.
Two rings per groove, except for the rails that will be two rail rings per one expander ring.

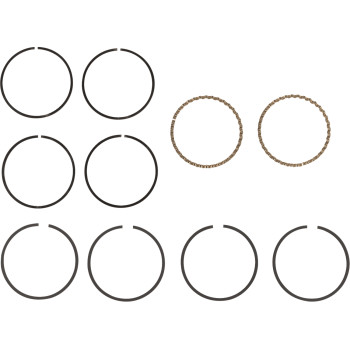

• Kit Includes:
• • 2x Top Compression Rings
• • 2x Second Compression Rings
• • 2x Expander Rings
• • 4x Steel Rails

1983-1985	Harley-Davidson	XLX 1000 early: 1985	-	-
1983-1984	Harley-Davidson	XR1000	-	-
1979-1985	Harley-Davidson	XLS Roadster early: 1985	-	-
1977-1978	Harley-Davidson	XLCR Cafe Racer	-	-
1977-1978	Harley-Davidson	XLT	-	-
1972-1985	Harley-Davidson	XLH1000 early: 1985	-	-
1972-1979	Harley-Davidson	XLCH	-	-
