Moose Offroad or All Balls Carburetor Repair Kit
Kits include all of the necessary components to repair a carburetor
Kits include all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat (needle jet and other pressed in jets are not included in kit)
OEM jet sizes are included in the kit (KTM and Husqvarna kits do not include jets or slide needle standard jetting sizes are not provided by the factory)
NBR rubber material is used on all O-rings and rubber gaskets; NBR has excellent resistance to the ethanol used in today's fuels
Applications that use paper float bowl gaskets are upgraded to High Performance Interface Gasket material
Components included in the kits are based off of US models and discretion must be used when attempting to install the kit on a non-US model

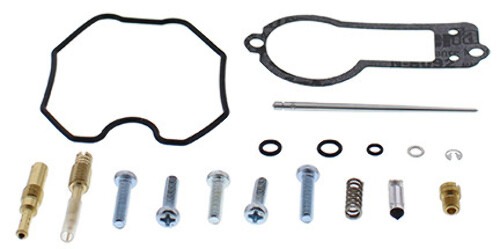

Included Items:
(1) Jet needle
(1) Pilot screw
(1) Spring
(1) Float valve
(3) O-rings(assorted sizes)
(1) Flat washer
(1) E-clip
(1) Float chamber o-ring
(1) Top cover gasket
(3) 4mm-0.70 x 16mm Pan head bolts
(2) 4mm-0.70 x 14mm Pan head bolts
(1) #122 Main jet
(1) #38 Slow jet
No instructions

Honda XR250L 1991-1996
