About the Shocks
5 click compression adjustment makes it easy to adjust settings on the trail and mountain
Anodized dual ring locking adjusters make it easy to adjust your preload but ensure they stay set once you have them adjusted
Arctic Cat & Polaris reservoirs have a finned cooling system that helps decrease temperatures and increases longevity and performance
All ski shocks have compression/ rebound adjustment
Front/ Rear track shock with compression/ rebound adjustment available for select Ski-Doo models
Arctic Cat & Polaris track shocks have compression adjustment only
All springed shocks feature a threaded body for ultimate preload adjustability
Rebuild kits and replacement parts available for servicing and custom valving
Hardened Chromoly shaft increases overall strength and seal longevity
Springs are powder coated to reduce corrosion, increase durability and ensure continued strength under the harshest of conditions
Eyelets consist of a forged aluminum head with premium steel and NBR bushings
All shocks are sold each

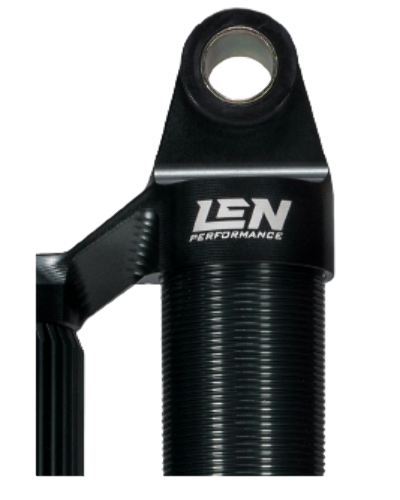

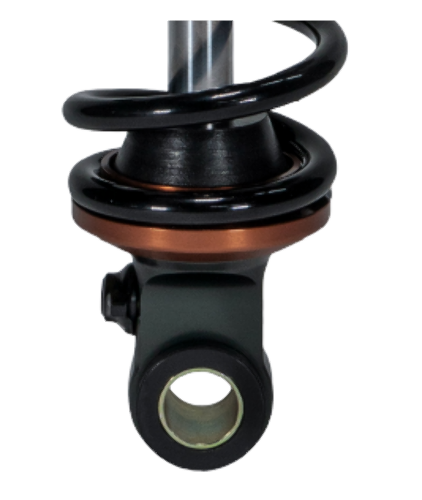

EYELET / BUSHING
Anodized Billet aluminum heads with premium steel and NBR bushings

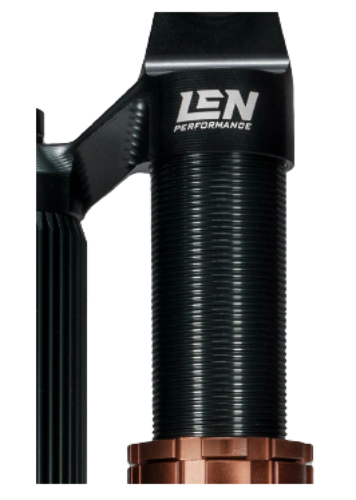

INFINITE PRELOAD ADJUSTMENT
All spring shocks feature a threaded body for ultimate preload adjustability. Anodized dual ring locking adjusters make it easy to adjust your preload but ensure they stay set once you have them adjusted to your preferred settings

SERVICEABLE / TUNABLE
Serviceable design increases the lifespan of our shocks and ensures consistent performance for many years to come. Len shocks can be easily serviced and tuned by our expansive network of service centers

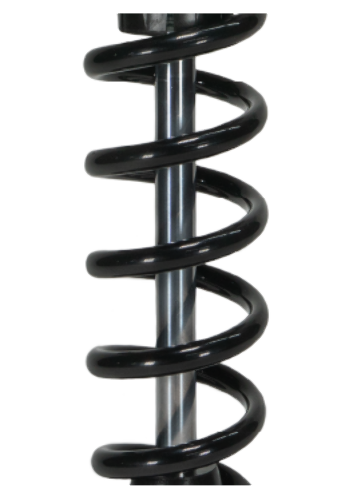

SHAFT
Hardened chromoly shaft increases overall strength and seal longevity

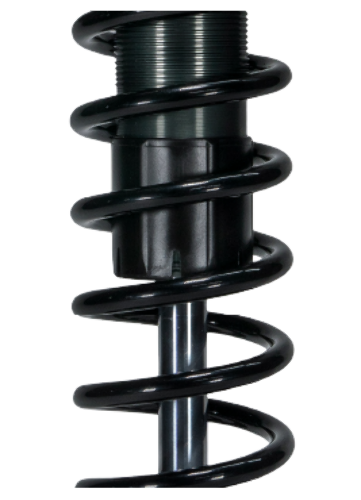

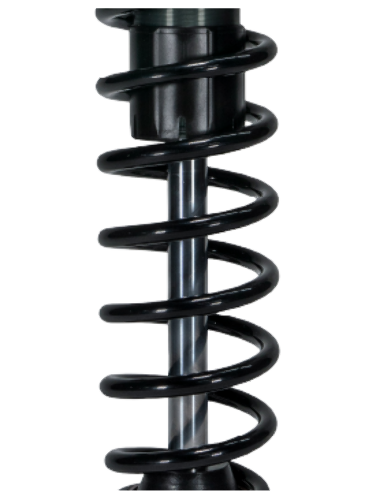

SPRING
Springs are powder coated to reduce corrosion, increase durability and ensure continued strength under the harshest of conditions

REBOUND ADJUSTER
Len Snowmobile Ski Shocks feature a user friendly intuitive design and come standard with a 5 click rebound adjustment for increased adaptability to any riders experience level in any condition

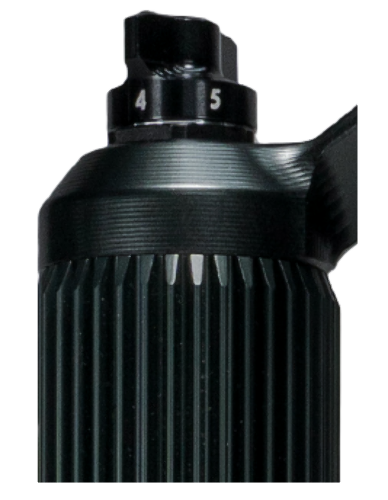

COMPRESSION ADJUSTER
Len Shocks all come standard with a 5 stage compression adjustment. User friendly intuitive design features 5 click compression adjustments for seamless adaptation to any riders experience level in any condition

FINNED RESERVOIR
Annodized aluminum finned reservoir offers added surface area for superior cooling, while also increasing strength

Len Performance was developed in the heart of the American Midwest by riders that are passionate about the powersports industry and the machines they ride. We set off to develop a line of high performance shocks that we could rely on whether we were on the trails in Minnesota or in the backcountry of Wyoming. We knew what we wanted, a rebuildable reservoir shock that is tunable, adjustable but also user friendly. By partnering with world class suppliers we have done just that. We have launched our 5 stage compression and rebound adjustable shock series.

SHOCK LOCATION		REAR TRACK
SHOCK WEIGHT (lbs)		6.45
SHOCK LENGTH OPEN		435mm / 17.13inch
SHOCK LENGTH CLOSED		290mm / 11.42inch
SHOCK STROKE LENGTH		145mm / 5.71inch
EYELET TOP ID		17.8mm / 0.71inch
EYELET TOP WIDTH		29.5mm / 1.17inch
EYELET BOTTOM ID		18mm / 0.71inch
EYELET BOTTOM WIDTH		29.5mm / 1.17inch
SPRING DIAMETER		63mm / 2.49inch
KIT USED IN		LS4-50004K

SHOCK FEATURED ADJUSTMENTS
COMPRESSION ADJUSTMENTS	REBOUND ADJUSTMENTS
8 LOW / 3 HIGH
