$44.44
Genuine Mikuni KHS-004 Flange Intake Mount Adapter
Adapters fit spigot-type carburetors
Includes clamp
Color: Black
Material: Rubber
Bore Size: 38mm
Bolt center to bolt center - 74.6mm
Throat Depth - 28mm
Sold Individually
Made in Japan

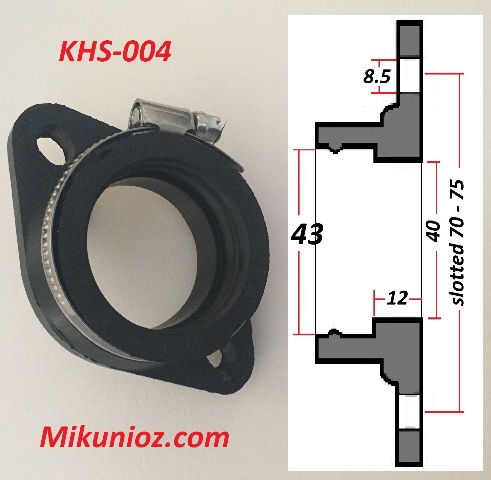

It is also the replacement item for the Harley HS40 Kit where the heavy air-cleaner and cover must be supported. This rubber Mounting Flange is for 43mm carb spigot diameter with slotted 70-75mm mounting bolt centres for 8.5mm diameter studs
Carburetor Mounting Flanges, Carburetors and other smaller items are shipped in bulk to our distributors from Mikuni and are not individually packaged by Mikuni.
Adapters fit spigot-type carburetors
Includes clamp
Color: Black
Material: Rubber
Bore Size: 38mm
Bolt center to bolt center - 74.6mm
Throat Depth - 28mm
Sold Individually
Made in Japan
It is also the replacement item for the Harley HS40 Kit where the heavy air-cleaner and cover must be supported. This rubber Mounting Flange is for 43mm carb spigot diameter with slotted 70-75mm mounting bolt centres for 8.5mm diameter studs
Carburetor Mounting Flanges, Carburetors and other smaller items are shipped in bulk to our distributors from Mikuni and are not individually packaged by Mikuni.
