$58.00
Features

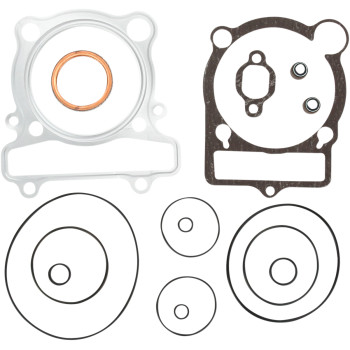

Top-end gasket set includes all necessary top-end gaskets, o-rings and valve guide oil seals to complete a top-end rebuild

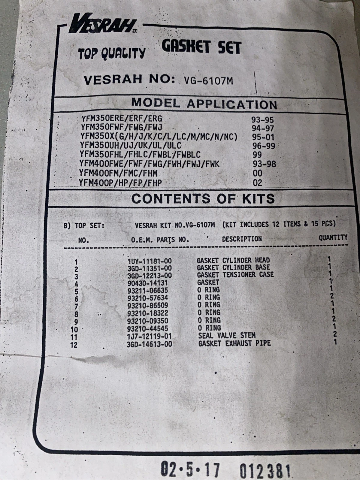

| No. | O.E.M. Parts No. | Description | Quantity |
|---|---|---|---|
| 1 | 1UY-11181-00 | GASKET CYLINDER HEAD | 1 |
| 2 | 3GD-11351-00 | GASKET CYLINDER BASE | 1 |
| 3 | 3GD-12213-00 | GASKET TENSIONER CASE | 1 |
| 4 | 90430-14131 | GASKET | 1 |
| 5 | 93211-06635 | O RING | 1 |
| 6 | 93210-57634 | O RING | 2 |
| 7 | 93210-86509 | O RING | 1 |
| 8 | 93210-18322 | O RING | 1 |
| 9 | 93210-09350 | O RING | 2 |
| 10 | 93210-44545 | O RING | 1 |
| 11 | 1J7-12119-01 | SEAL VALVE STEM | 2 |
| 12 | 3GD-14613-00 | GASKET EXHAUST PIPE | 1 |
Specs
| Product Name | Gasket |
| Type | Top End |
| Engine Type | 4-Stroke |
| Units | Set |
| Riding Style | ATV |
Package info
| Weight | 0.31 lbs |
| Height | 0.32 |
| Length | 13.63 |
| Width | 9.74 |
| 1996-1999 | Yamaha | YFM350U Big Bear 2x4 | - | - |
| 1993-1998 | Yamaha | YFM 400 Kodiak | - | - |
| 1993-1996 | Yamaha | YFM350FW Big Bear 4x4 | - | - |
| 1993-1995 | Yamaha | YFM350ER Moto-4 | - | - |
| 1992-2004 | Yamaha | YFM350X Warrior | - | - |
|
