Features

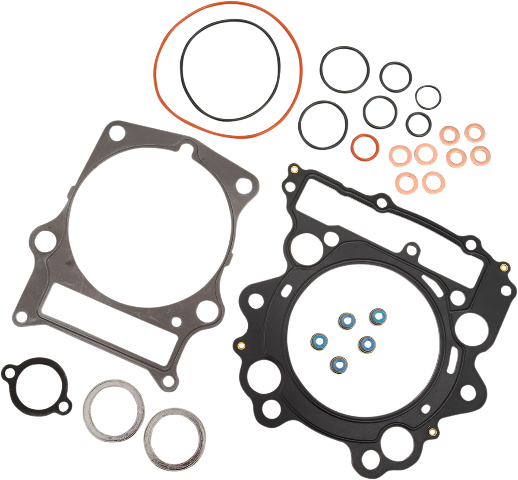

Top end gasket kit includes correct base, head gasket and cylinder O-rings as well as other top end specific O-rings or seals needed for R&R of top end
MLS head gaskets promote an even torque load across the gasket sealing surface, providing less bore distortion and better piston ring seal for more power
4-stroke head gaskets are made to perform on today’s highest-output 4-stroke naturally aspirated and boosted machines, utilizing a multi-layered steel design with the outer layers being embossed and coated with a Viton rubber coating; these head gaskets are designed to meet the demands of today's high-horsepower, high-cylinder-pressure engines
EST (Extreme Sealing Technology) gasket kit includes embossed stainless steel head, base and rocker gaskets covered with a proprietary rubber material
Head gasket material allows heat to be drawn away from the combustion ring and dissipated evenly across the gasket surface to eliminate hot spots and gasket failure
Made in the USA

Specs
Type Top End
Material MLS (Multi-layer Steel)
Units Kit
Thickness 0.76 mm / 0.030"
Model Hi-Performance
Riding Style UTV / ATV
Bore Size 102.00 mm
Engine Type 4-Stroke
Product Name Gasket Kit

Package info
Weight 0.34 lbs
Height 0.19
Length 8.97
Width 7.99

2004-2007 Yamaha YXR 660F Rhino 4x4
2001-2005 Yamaha Raptor 660R 4x2
