Cometic Extreme Sealing Technology (EST) Motor Only Gasket Set - C9892
EST kits ensure critical seal and superior durability that meets and exceed OE specifications
MLS (multi-layer-steel) head gaskets are ideal for any combination of head and cylinder materials, comprised of two embossed viton coated stainless steel outer layers and variable stainless center layer
The variable center layer allows us to create multiple gasket thickness options, no re-torque is required after initial torque set
Rubber coated single layer steel base gaskets are viton rubber coated with a steel core
AFM material engine cover gaskets are made for a chemically blown compounded nitrile synthetic rubber that is bonded to an aluminum core.
AFM has a temperature resistance of over 250 degrees F and an 85 percent recovery while maintaining a strong torque retention, they also install dry and do not require a re-torque
Viton valve stem seals are made from hi-temperature Flouroviton with Teflon to prolong valve stem life and have a spring on the wiper to maintain a positive seal
Race style exhaust gasket that will not fray into the port
Copper washers and Viton o-rings are used to seal drain plugs and engine covers with stock o-ring seals


For models listed with a 1550 big bore, .040" head gasket

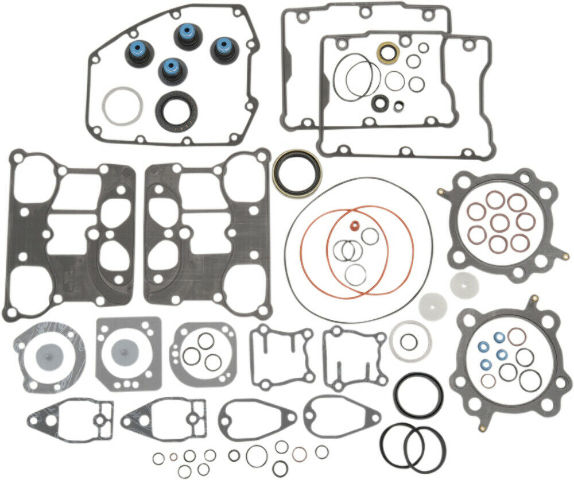

Included Items:
(2) Cylinder head gaskets

(1) Cam cover gasket

(2) Rocker cover gaskets

(2) Lower rocker box gaskets

(2) Exhaust gaskets

(4) Upper valve breather gaskets

(4) Lower valve breather gaskets

(2) Valve breather filters

(2) Lifter cover gaskets

(2) Cylinder base O-rings

(1) Manifold quad seal ring

(2) Carburetor to backplate gaskets

(1) MAP Sensor seal

(2) Intake valve seals

(1) 43 X 61 X 12 Oil seal

(1) Carburetor gasket

(2) Umbrella seals

(8) Valve stem seals

(1) 32 X 52 X 7 Oil seal

(1) 16 X 28.5 X 6 Oil seal

(1) 11 X 23 X 6 Oil seal

(1) Collar

(40) O-rings (Assorted sizes)
