Magnum Black Pearl Designer Series Handlebar Installation Kit for Use w/12 in. - 14 in. Ape Hangers (w/ABS)
The only complete kits with matching braided cables and brake lines
Kits include throttle and idle cables (except 08-15 Dressers), clutch cable or hydraulic clutch line, brake lines, copper crush washers, hardware and wiring extensions

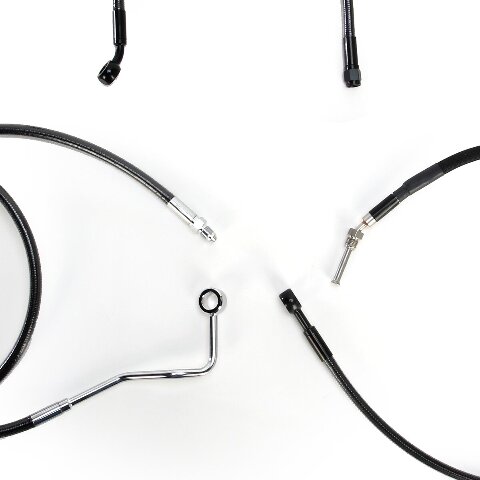

All fittings are highly polished and black chrome-plated
All cables are a low-effort, high-efficiency design that meets or exceeds all OE specifications for fitment, construction, endurance
Kits for dual disc models include an all brazed manifold that eliminates leaks, alignment problems, and unattractive threaded connections
Brake lines exceed all DOT FMVSS-106 requirements
Made in the U.S.A.

NOTE: Kits are based on using ape hanger style handlebars with 2 in. risers.

NOTE: Uses OEM lower

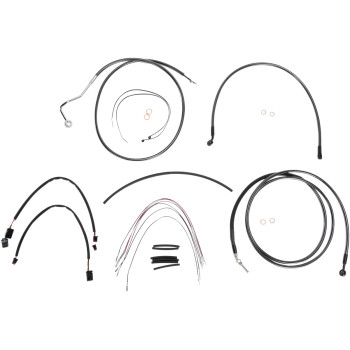

Included Items:
(1) 51-3/4" Black smoke brake line w/(1) 12mm banjo fitting and (1) male AN#3 fitting
(2) Cable ties
(2) 12mm Copper crush washers
(1) 26" Black smoke brake line w/(1) 3/8"/10mm 35-degree banjo and (1) female AN#3 fitting
(1) 82" Black smoke brake line w/(1) 3/8"/10mm straight banjo fitting and (1) 3/8-24" male inverted flare fitting
(4) 3/8"/10mm Copper crush washers
(1) 17" Can-bus wire harness
(1) 15-3/4" Can-bus wire harness
(1) 14" Shrink tubing
(6) 2-1/2" Shrink tubing
(6) 16" Wires W/male/female bullet connectors
Instructions
