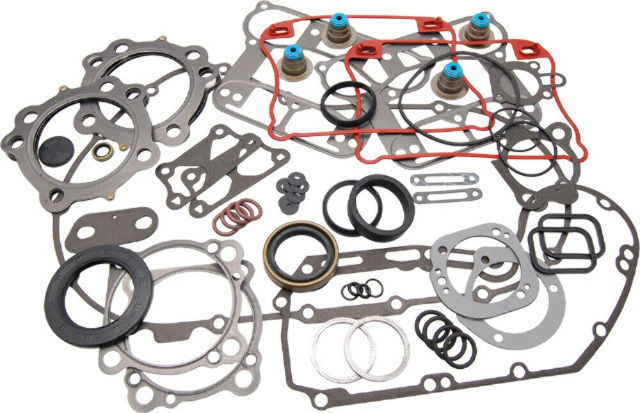

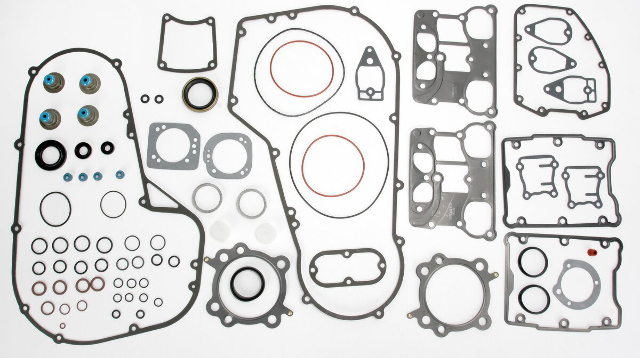

Cometic Extreme Sealing Technology (EST) Complete Gasket Set
EST kits ensure critical seal and superior durability that meets and exceed OE specifications
MLS (multi-layer-steel) head gaskets are ideal for any combination of head and cylinder materials, comprised of two embossed coated stainless steel outer layers and variable stainless center layer
The variable center layer allows us to create multiple gasket thickness options, no re-torque is required after initial torque set
Rubber coated single layer steel base gaskets are rubber coated with a steel core
AFM material engine cover gaskets are made for a chemically blown compounded nitrile synthetic rubber that is bonded to an aluminum core.
AFM has a temperature resistance of over 250 degrees F and an 85 percent recovery while maintaining a strong torque retention, they also install dry and do not require a re-torque
Viton valve stem seals are made from hi-temperature Flouroviton with Teflon to prolong valve stem life and have a spring on the wiper to maintain a positive seal
Race style exhaust gasket that will not fray into the port
Copper washers and O-rings are used to seal drain plugs and engine covers with stock O-ring seals

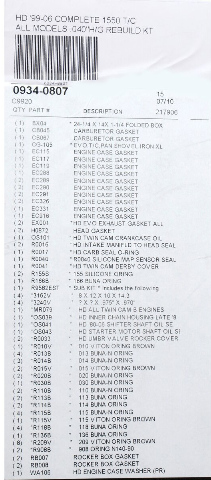

Contains all necessary gaskets for application

For models listed with 1550 big bore kit, .040 head gasket

Specs
Product Name Gasket Kit
Type Complete
Material Steel / AFM (Aluminum Foam Material) / Viton
Bore Size 3.875"
Thickness 1.02 mm / 0.040"
Features For '99-'06 Big Twin
Units Kit
Riding Style Street

Package info
Weight 2 lbs
Height 1.88
Length 22.9
Width 13.5

Harley-Davidson
Dyna Convertible - FXDS-CONV 1999-2000
Dyna Low Rider - FXDL 1999-2005
Dyna Low Rider Injected - FXDL I 2004-2005
Dyna Super Glide - FXD 1999-2005
Dyna Super Glide Custom - FXDC 2005
Dyna Super Glide Custom Injected - FXDC I 2005
Dyna Super Glide Injected - FXD I 2004-2005
Dyna Super Glide Sport - FXDX 1999-2005
Dyna Super Glide Sport Injected - FXDX I 2004-2005
Dyna Super Glide T-Sport - FXDXT 2001-2003
Dyna Wide Glide - FXDWG 1999-2005
Dyna Wide Glide Injected - FXDWG I 2004-2005
Electra Glide Classic - FLHTC 1999-2005
Electra Glide Classic Injected - FLHTC I 2002-2006
Electra Glide Standard - FLHT 2002-2006
Electra Glide Standard Injected - FLHT I 2003-2006
Electra Glide Ultra Classic - FLHTCU 1999
Electra Glide Ultra Classic Injected - FLHTCU I 2002-2006
Electra Glide Ultra Classic Injected CVO/SE - FLHTCUSE 2006
Heritage Softail - FLST 2006
Heritage Softail Classic - FLSTC 2000-2006
Heritage Softail Classic Injected - FLSTC I 2001-2006
Heritage Softail Injected - FLST I 2006
Heritage Softail Springer - FLSTS 2000-2003
Heritage Softail Springer Injected - FLSTS I 2001-2003
Road Glide - FLTR 1999, 2002
Road Glide Injected - FLTR I 2002-2006
Road King - FLHR 1999-2006
Road King Classic Injected - FLHRC I 2002-2006
Road King Custom - FLHRS 2004-2006
Road King Custom Injected - FLHRS I 2004-2006
Road King Injected - FLHR I 2002-2006
Softail Deluxe - FLSTN 2005-2006
Softail Deluxe Injected - FLSTN I 2005-2006
Softail Deuce - FXSTD 2000-2006
Softail Deuce Injected - FXSTD I 2001-2006
Softail Fat Boy - FLSTF 2000-2006
Softail Fat Boy Injected - FLSTF I 2001-2006
Softail Night Train - FXSTB 2000-2006
Softail Night Train Injected - FXSTB I 2001-2006
Softail Springer - FXSTS 2000-2006
Softail Springer Classic - FLSTSC 2005-2006
Softail Springer Classic Injected - FLSTSC I 2005-2006
Softail Springer Injected - FXSTS I 2001-2006
Softail Standard - FXST 2000-2006
Softail Standard Injected - FXST I 2001-2006
Street Glide - FLHX 2006
Street Glide Injected - FLHX I 2006
