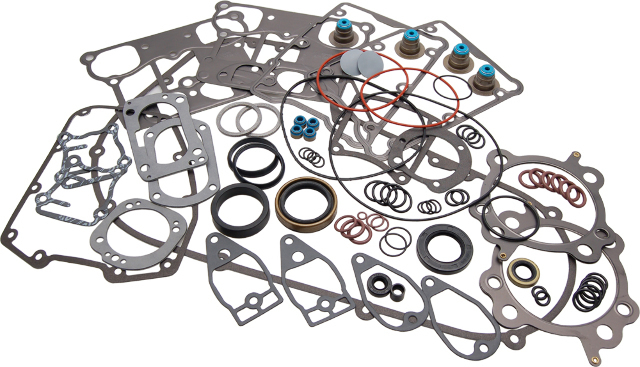

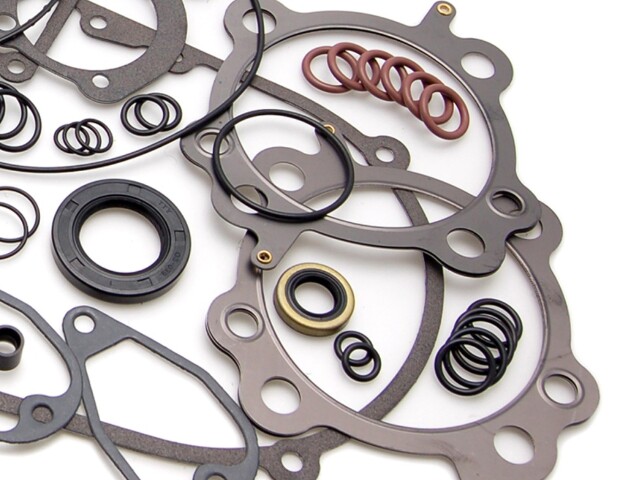

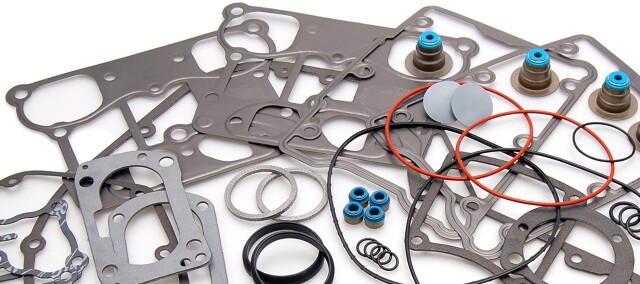

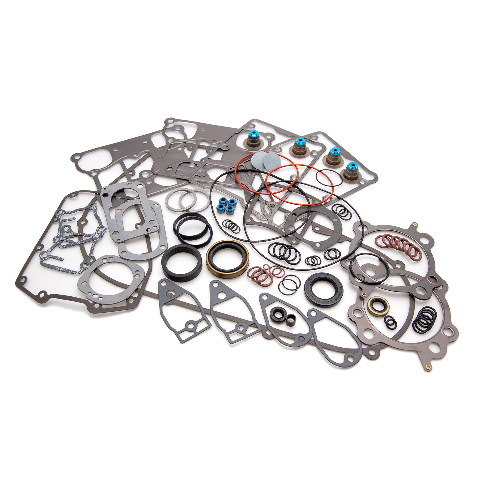

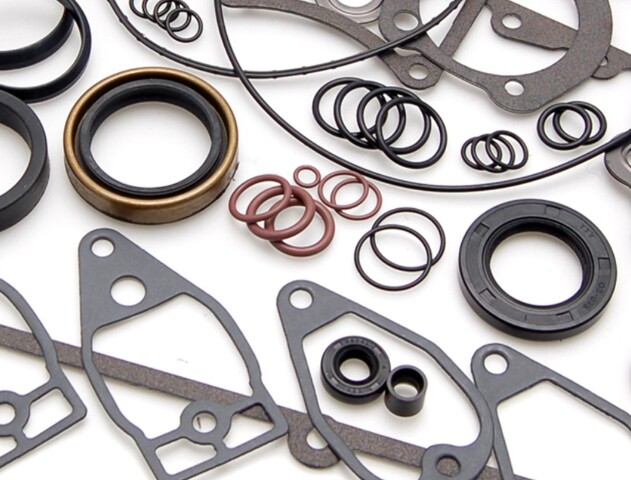

Cometic Extreme Sealing Technology (EST) Complete Gasket Set
EST kits ensure critical seal and superior durability that meets and exceed OE specifications
MLS (multi-layer-steel) head gaskets are ideal for any combination of head and cylinder materials, comprised of two embossed rubber coated stainless steel outer layers and variable stainless center layer
The variable center layer allows us to create multiple gasket thickness options, no re-torque is required after initial torque set
Rubber coated single layer steel base gaskets are rubber coated with a steel core
AFM material engine cover gaskets are made for a chemically blown compounded nitrile synthetic rubber that is bonded to an aluminum core.
AFM has a temperature resistance of over 250 degrees F and an 85 percent recovery while maintaining a strong torque retention, they also install dry and do not require a re-torque
Valve stem seals are made from hi-temperature Flouroviton with Teflon to prolong valve stem life and have a spring on the wiper to maintain a positive seal
Race style exhaust gasket that will not fray into the port
Copper washers and O-rings are used to seal drain plugs and engine covers with stock O-ring seals

Included Items:
(1) Folded Box 24-1/4 x 14 x 1-1/4
(2) Carb gaskets
(13) Engine case gaskets
(2) Race style exhaust gaskets
(2) Head gaskets
(1) Crankcase oil seal
(2) Intake manifold gasket seals
(1) Carb seal O-ring
(1) Silicone sensor
(1) Derby cover O-ring
(27) Assorted O-rings
(1) Inner chain case oil seal
(1) Shift shaft oil seal
(1) Starter motor oil seal
(2) Umbrella valve rocker cover seals
(12) O-rings
(4) Valve stem seals
(4) Rocker box gaskets

Specs
Product Name Gasket Kit
Type Complete
Material MLS (Multi-layer Steel) / AFM (Aluminum Foam Material) / Viton
Bore Size 3.750"
Thickness 0.040" / 1.02 mm
Features For '99-'06 FLHT/​FLTR/​FLHR
Units Kit
Riding Style Street

Package info
Weight 1.7 lbs
Height 2.3
Length 22.89
Width 13.45

2006 Harley-Davidson Electra Glide Classic FLHTC
2006 Harley-Davidson FLHTCUSE Screamin Eagle Ultra Classic Electra Glide
2005 Harley-Davidson FLHTCSE2 Screamin Eagle Electra Glide 2
2004-2006 Harley-Davidson FLHRS Road King Custom
2004-2006 Harley-Davidson FLHRSI Road King Custom
2004 Harley-Davidson FLHTCSE Screamin Eagle Electra Glide
2003-2006 Harley-Davidson FLHTI Electra Glide Standard
2003 Harley-Davidson FLHRSEI2 Screamin Eagle Road King 2
2002 Harley-Davidson FLHRSEI Screamin Eagle Road King
2000-2006 Harley-Davidson FLHRI Road King
2000-2002 Harley-Davidson Electra Glide Standard EFI FLHTI
1999-2006 Harley-Davidson Electra Glide Police FLHTPI
1999-2006 Harley-Davidson Electra Glide Ultra Classic FLHTCU
1999-2006 Harley-Davidson Electra Glide Police FLHTP
1999-2006 Harley-Davidson FLHR Road King
1999-2006 Harley-Davidson FLHTCUI Electra Glide Ultra Classic
1999-2006 Harley-Davidson FLHT Electra Glide Standard
1999-2006 Harley-Davidson FLTR Road Glide
1999-2006 Harley-Davidson FLHRCI Road King Classic
1999-2006 Harley-Davidson FLHTCI Electra Glide Classic
1999-2006 Harley-Davidson FLTRI Road Glide
1999-2005 Harley-Davidson FLHTC Electra Glide Classic
1999 Harley-Davidson Road King EFI FLHR
