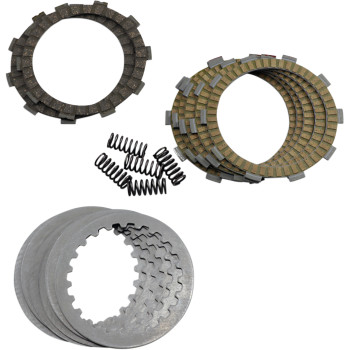

Hinson FSC159-7-001 Clutch Plate and Spring Kit
Can be used with OE baskets, inner hubs and pressure plates
Developed with and recommended to enhance the performance of Hinson clutch baskets, inner hubs and pressure plates
Provide optimum hook up with minimum heat build up
Exceptional production tolerances and flatness
All fiber plates use organic mom-abrasive materials to avoid damage to res of motor as plate materials break down and are circulated through engine by oil manufactured to OE specs using high quality materials

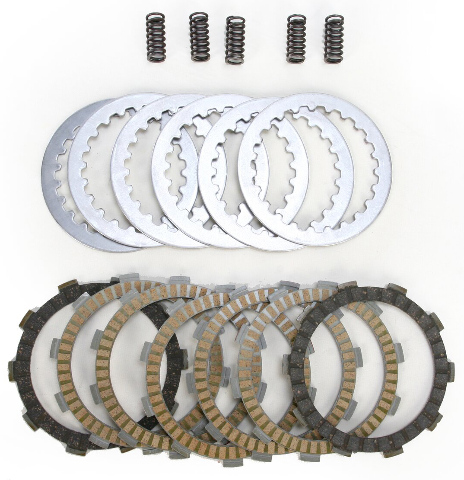

Included Items:
(7) Fiber plates
(6) Steel plates
(5) Clutch springs
Instructions

2002-2026 Yamaha YZ85/LW


2002-2026 YZ85 YZ85LW Fiber, Steel and Spring Clutch Pack Instructions

Crucial Inspection

If your clutch has a jutter spring and seat ring, located at the bottom of your inner hub, this needs to be removed.

Instructions:
Remove clutch plates from packaging and soak in oil for 12 hours.
Separate plates, (2) narrow fiber plates (5) wide fiber plates
Install (1) of the narrow fiber plates
Install (6) steel and or aluminum plates, alternating with (5) wide fiber plates
Install (1) narrow fiber plate
Re-install pressure plate and all other stock components.

We recommend petroleum 80w-80 Racing Transmission Oil, and that you change it after each time you ride. Also we recommend soaking your clutch plates in oil before you install them.
