Carburetor Carb Repair Kit 1998-2004 Suzuki VL1500 Intruder


Kit includes all necessary O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat (needle jet and other pressed-in jets are not included in kit)
Models with multiple carburetors include components to repair all carburetors
OEM jet sizes and slide needles are included in the kit
NBR rubber material is used on all O-rings and rubber gaskets; NBR has excellent resistance to the ethanol used in today's fuels
Applications that use paper float bowl gaskets are upgraded to High Performance Interface Gasket material

Fits: 1998-2004 Suzuki VL1500 Intruder

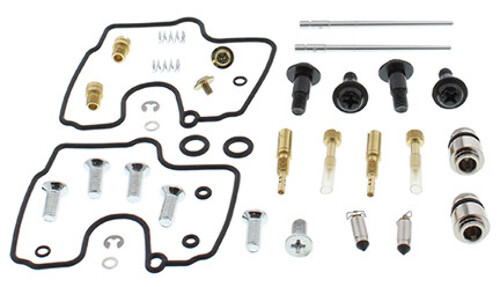

Included Items:
(2) Float chamber o-rings

(6) O-rings(assorted sizes)

(2) Jet needles

(2) Pilot screws

(2) Springs

(2) Needle and seat sets

(2) Flat washers

(2) E-clips

(6) 5mm-0.80 x 10mm Tapered flat head bolts

(4) 5mm-0.80 x 7mm Flange pan head shoulder bolts

(2) Small screws

(1) #112.5 Main jet

(2) #32.5 Pilot jets

(1) #110 Main jet

No instructions
