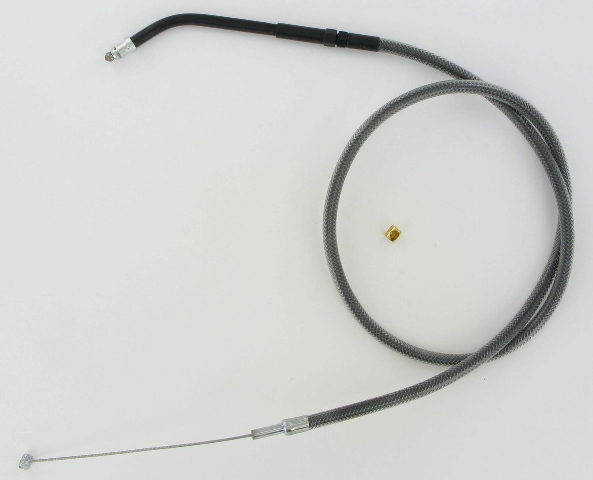

Magnum 31 3/4 in. Black Pearl Braided Throttle Cable w/ 45 Degree Elbow
State-of-the-art throttle cable by Magnum
Black Pearl braid features black-chrome fittings
Advanced multi-strand design for superior flexibility
Polyethylene inner lining ensures smooth, trouble-free operation
PVC and high-temperature polyester moisture barrier under the braiding keeps out the elements and prolongs life
Made in the U.S.A.

NOTE: Length given is length of outer housing only, excluding elbows

NOTE: All pre-96 cables have threaded elbows; 96 and later cables have non-threaded elbows

Replacement Part for OEM Number: 5638196

Specs
Product Name Cable
Type Throttle
Style Braided
Color/Finish Black
Base Color Black
Housing Material Stainless Steel
Housing Length 31-3/4"
Travel 5-1/8"
Elbow Angle 45°
Handlebar Fitting Smooth
Cruise Non-Cruise
Units Each
Riding Style Street

Package info
Weight 0.45 lbs
Height 0.75
Length 12.5
Width 10

Braid color and weave match on all Magnum control cables and brake lines
All fittings are polished and plated
Crystal clear outer jacket offers exceptional protection against scuffing paint or chrome and will never discolor
All cables are made with anti-friction inner liners, nylon adjuster inserts and are factory lubricated for smooth, consistent, long lasting operation
Meets or exceeds all OE specifications for fitment, construction and endurance
Assembled in the U.S.A.
Length given is the length of the outer housing only, excluding the elbow
Cables will also fit late style Mikuni carbs
Cables with applications before '96 have threaded elbows, while those for '96 applications and later have non-threaded elbows

2006	Harley-Davidson	883 Low EFI XLL	-	Notes: 2006 Alternate Length
2006	Harley-Davidson	XL1200L Sportster 1200 Low	-	Notes: 2006 Alternate Length
2006	Harley-Davidson	1200 Roadster EFI XLR	-	Notes: 2006 Alternate Length
2006	Harley-Davidson	1200 Low EFI XLL	-	Notes: 2006 Alternate Length
2005-2006	Harley-Davidson	XL883L Sportster 883 Low	-	Notes: 2005-2006 Alternate Length
2004-2006	Harley-Davidson	XL883 Sportster	-	Notes: 2004-2006 Alternate Length
2004-2006	Harley-Davidson	XL1200R Sportster 1200 Roadster	-	Notes: 2004-2006 Alternate Length
2002-2006	Harley-Davidson	1200 Custom EFI XLC	-	Notes: 2002-2006 Alternate Length
2002-2003 , 2005-2006	Harley-Davidson	XL883R Sportster 883 Roadster	-	Notes: 2002-2003, 2005-2006 Alternate Length
2002-2003 , 2005-2006	Harley-Davidson	883 Roadster EFI XLR	-	Notes: 2002-2003, 2005-2006 Alternate Length
2002-2003	Harley-Davidson	XLH883HUG Sportster 883 Hugger	-	Notes: 2002-2003 Alternate Length
2002-2003	Harley-Davidson	1200 XLCP	-	Notes: 2002-2003 Alternate Length
1999-2006	Harley-Davidson	XL883C Sportster 883 Custom	-	Notes: 1999-2006 Alternate Length
1999-2006	Harley-Davidson	883 Custom EFI XLC	-	Notes: 1999-2006 Alternate Length
1999-2003	Harley-Davidson	XL1200S Sportster 1200 Sport	-	Notes: 1999-2003 Alternate Length
1999-2003	Harley-Davidson	Sportster 883 XLH	-	Notes: 1999-2003 Alternate Length
1999-2003	Harley-Davidson	Sportster 1200 XLH	-	Notes: 1999-2003 Alternate Length
1999-2001	Harley-Davidson	XLH883	-	Notes: 1999-2001 Alternate Length
1996-2006	Harley-Davidson	XL1200C Sportster 1200 Custom	-	Notes: 1996-1998 Stock Length , 1999-2006 Alternate Length
