Monster Top Fuel Belt Drive Kit with Clutch

Features

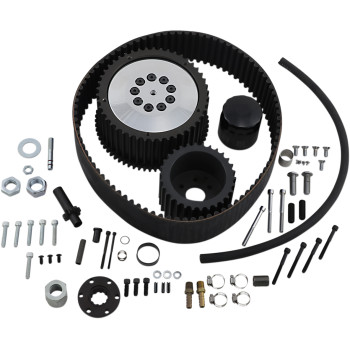

Kit includes front and rear pulley, 3-3/8" belt, nine aramid friction plates and 11 steel clutch plates; use up to nine springs for varying pressure to accommodate any motor size
Includes oil filter mount between the pulleys

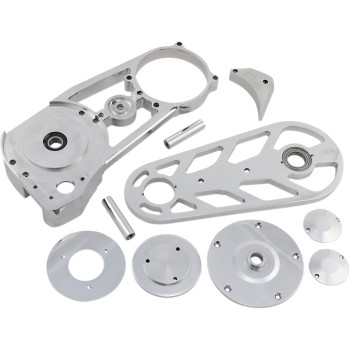

Polished outboard bearing support; outboard support is reversible and the back side is channeled for another distinct look, but only the flat side is polished
Replacement components available separately
Made in the U.S.A.
Systems are not designed for use with floorboards.

Specs
Units Kit
Model Monster
Product Name Belt Drive Kit
Material Steel / Aluminum
Riding Style Street

Package info
Weight 51.6 lbs
Height 11.92
Length 24.01
Width 12.2

The 14mm by 85mm wide (3-3/8”) belt is the same that the Top Fuel racers use on the 600-plus-horsepower machines.

This monster’s aramid clutch consists of varying spring pressure to accommodate any size motor on the market.

The hub is machined from 7075 aluminum and then hard anodized for superior strength.

This kit is designed for oil filter mounting in the motor plate.

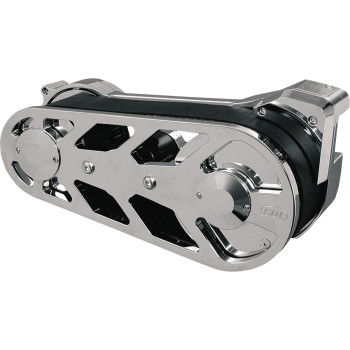

The TF-2000 is the complete drive with outboard bearing support.

The outboard support plate is reversible. The backside is channeled for another distinct look, but the flat side will be polished.

Fits Softails 1990-2006.

Includes:

A Rear Basket FOR TOP FUEL DRIVES ONLY TFRP-46
B 30 Tooth Front Pulley FOR TOP FUEL DRIVES ONLY TFFP-30
C 14mm 85 tooth 85mm wide belt for TF Drives BDL-14-85
D Clutch Hub FOR TOP FUEL DRIVES ONLY TFCH-180
E Complete Clutch Kit (includes fibers and steels) TFCPS-100
F Pressure Plate For Top Fuel Drives TFSS-PP
G Hub Nut with Seal (NO LONGER AVAILABLE) HNS-100
H Adjusting Screw and Clutch Hub Nut CDAS-100A
I Shoulder Bolts Set of 9 CDSB-100
J Replacement Coil Springs set of 6 ECS-100
K 1/2" Insert and Nut IN-500
L Hardware Kit for TF drive TFHK-2000
M Softail® Motor Plate TFMP-100
MB Motor Plate Bearing MPB-9
N Starter Housing TFSH-100
O Bearing Support Plate for TF-2000 TFSG-400
P Oil Filter OF-1 (Fram No. PH6022
Q Starter Pinion Gear PG-100
R Standoffs for Top Fuel Drive TFSO-100
S Front pulley cover for TF-2000 TFFPC-2000
T Rear clutch cover for TF-2000 TFRPC-2000
U Bearing covers (sold in set of 2) TFBC-100
V Sealed Bearing (only one needed) TFBSB-100
W Ring Gear SG-2

2006 Harley-Davidson Softail Heritage EFI FLSTI - -
2005-2006 Harley-Davidson Softail Springer Classic FLSTSC - -
2005-2006 Harley-Davidson Softail Deluxe FLSTN - -
2005-2006 Harley-Davidson Softail Springer Classic EFI FLSTSCI - -
2005-2006 Harley-Davidson Softail Deluxe EFI FLSTNI - -
2001-2006 Harley-Davidson Softail Springer EFI FXSTSI - -
2001-2006 Harley-Davidson Softail Standard EFI FXSTI - -
2001-2006 Harley-Davidson Softail Night Train EFI FXSTBI - -
2001-2006 Harley-Davidson Softail Heritage Classic EFI FLSTCI - -
2001-2006 Harley-Davidson Softail Deuce EFI FXSTDI - -
2001-2006 Harley-Davidson Softail Fat Boy EFI FLSTFI - -
2001-2003 Harley-Davidson Softail Heritage Springer EFI FLSTSI - -
2000-2006 Harley-Davidson Softail Deuce FXSTD - -
1999-2006 Harley-Davidson Softail Night Train FXSTB - -
1997-2003 Harley-Davidson Softail Heritage Springer FLSTS - -
1995-1997 Harley-Davidson Softail Bad Boy FXSTSB - -
1994-1996 Harley-Davidson Softail Heritage Special FLSTN - -
1993 Harley-Davidson Softail Nostalgia FLSTN - -
1990-2006 Harley-Davidson Softail Springer FXSTS - -
1990-2006 Harley-Davidson Softail Fat Boy FLSTF - -
1990-2006 Harley-Davidson Softail Heritage Classic FLSTC - -
1990-1999 Harley-Davidson Softail Custom FXSTC - -
1990-1993 Harley-Davidson Softail Standard FXST - -
1990, 2006 Harley-Davidson Softail Heritage FLST - -
