Features

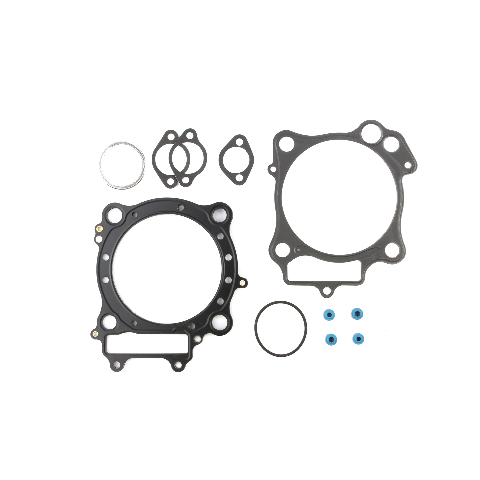

• Top end gasket kit includes correct base, head gasket and cylinder O-rings as well as other top end specific O-rings or seals needed for R&R of top end
• MLS head gaskets promote an even torque load across the gasket sealing surface, providing less bore distortion and better piston ring seal for more power
• 4-stroke head gaskets are made to perform on today’s highest-output 4-stroke naturally aspirated and boosted machines, utilizing a multi-layered steel design with the outer layers being embossed and coated with a Viton rubber coating; these head gaskets are designed to meet the demands of today's high-horsepower, high-cylinder-pressure engines
• EST (Extreme Sealing Technology) gasket kit includes embossed stainless steel head, base and rocker gaskets covered with a proprietary rubber material
• Head gasket material allows heat to be drawn away from the combustion ring and dissipated evenly across the gasket surface to eliminate hot spots and gasket failure
• Made in the USA

Specs
Product Name Gasket Kit
Riding Style ATV
Thickness 0.69 mm / 0,027"
Bore Size 101.00 mm
Material MLS (Multi-layer Steel)
Type Top End
Units Kit

Package info
Weight 0.2 lbs
Height 0.1
Length 7
Width 6

2006-2009, 2012-2014 Honda TRX450ER
2006-2009 Honda TRX450R
